TRX520FM6

$ 22,132

Including GST

Excluding on-roads costs

Excluding on-roads costs

Battery Included Price

Battery
Included
Price

$

Including GST

Special Price

$

Including GST

Excluding on-roads costs

Including on-roads costs

It all starts with a 518cc 4-stroke engine. For those looking for a plush and smooth ride it’s easy to choose the TRX520FM6. With independent rear suspension (IRS), a manual transmission and power steering, this is an unbelievably capable bike that will provide all-day comfort on the farm.

When you need a durable manual machine that can handle the toughest of terrain, and you also need a large towing capacity, the new TRX520FM6 is the perfect choice. The large engine provides improved power and torque where you need it - in the low end and midrange. Offering quick acceleration, better ascending and impressive hauling, complementing the massive 600kg towing capacity. A handlebar-mounted switch makes it easy to select between two-wheel drive, four-wheel drive and four-wheel drive with the front differential locked to handle all conditions and terrain.

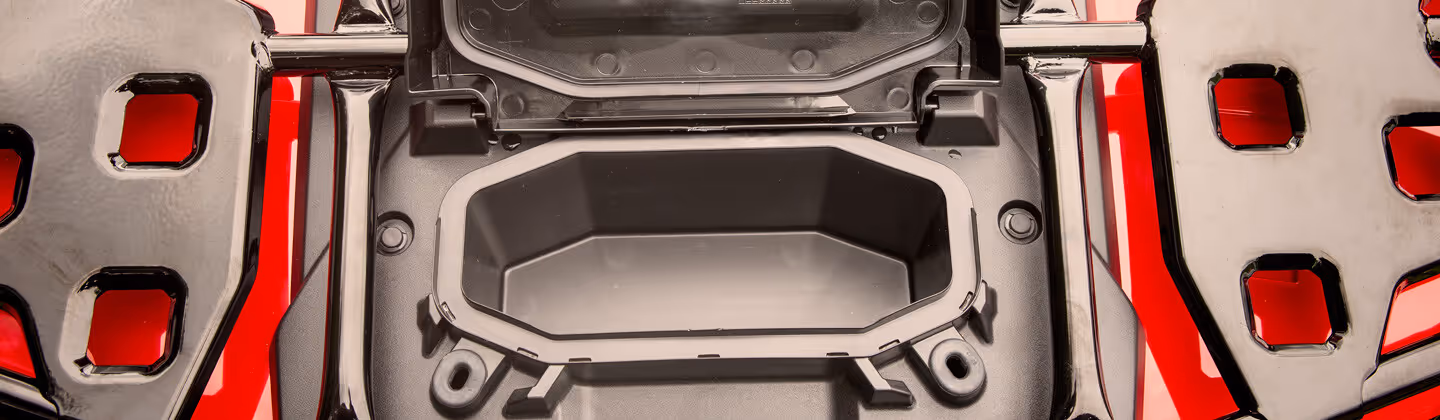

The 1.9L utility box with weatherproof cover on the front deck provides a second storage compartment, while the cleverly engineered front and rear cargo racks provide more loading options. Smart styling completes the package and provides a more aggressive stance, making the FM6 better than ever.

Specifications

Engine Type - Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke

Displacement (CC) - 518cc

Bore and Stroke - 96.0mm x 71.5mm

Ignition - Full-transistorised with electronic advance

Fuel System - Programmed Fuel Injection (PGM-FI) 36mm throttle body

Starter - Electric with auxiliary recoil standard

Final Drive - Direct front and rear driveshafts w/ TraxLok® and locking front differential

Transmission - Manual 5 speed with reverse

Suspension Front - Independent double wishbone - 185mm of travel

Suspension Rear - Independent rear suspension - dual arm - 215mm of travel

Kerb Weight - 318kg

Fuel Capacity - 14.7litres incl 4.9litres reserve

Dimensions - 2185mm(L) x 1205mm(W) x 1238 mm(H)

Carrier Capacity - 45kg Front rack– 85kg Rear rack

Towing Capacity - 600kg
